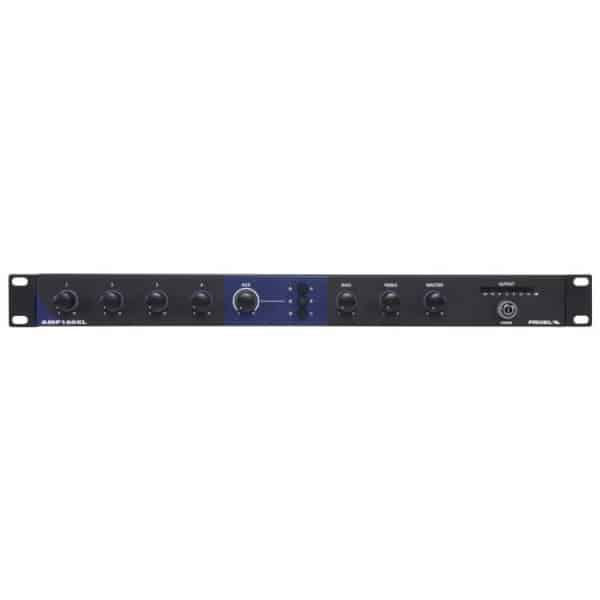

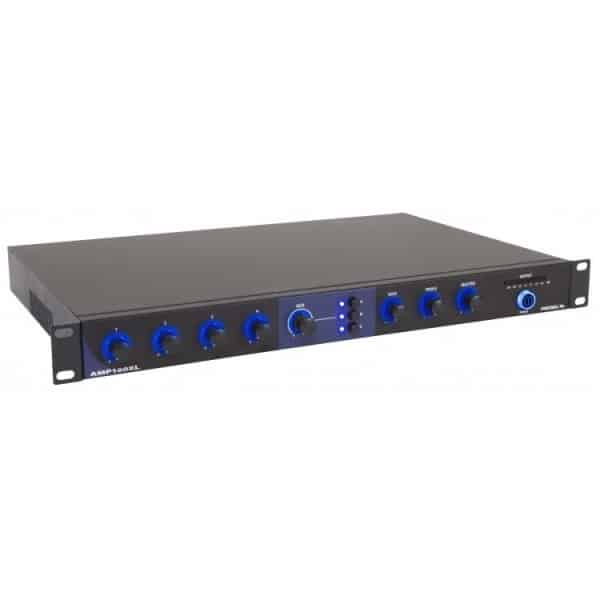

Proel AMP160XL

Amplificator cu Mixer 100V Proel AMP160XL – Proiectarea amplificatorului AMP160XL cu dimensiunile si greutatea incluse in doar o unitate rack, a fost posibila datorita folosirii unei tehnologii care permite schimbarea sursei de alimentare prin  SMPS (switch mode power supply) si datorita tensiunii de iesire constante la  70/100V, obtinuta electronic, fara transformatori.

Specificatii tehnice Proel AMP160XL:

•    Putere RMS:  160W

•    Intrari: 4xMIC/LINE balansat, 3 AUX (selectabil),1x MAIN IN (PRE OUT)
•    Sensibilitate intrare: MIC: -40dBV / 600 Ω balansat (cu 48Vphantom), LINE: 0dBV / 100 KΩ balansat, AUX: 0dBV / 47 KΩ nebalansat – MAIN IN: 0dBV / 10KΩ nebalansat
•    Semnal de iesire: PRE OUT(conectat in mod normal la MAIN IN), PRE OUT: 1V / 600 Ω, REC OUT: 1V / 600 Ω-BAL OUTPUT:1V / 600 Ω
•    Control Master volum 1 control tonuri inalte, 1 control ton bas, 4 MIC/LINE VOLUME CONTROLS, 1 AUX VOLUME CONTROL
•    Iesiri difuzoare: 100/70V/4Ω
•    Frecventa de raspuns: 80Hz -16KHz (-3dB)
•    Distorsiuni (THD): < 0.5% (@ Pnom 1KHz)
•    S/N Ratio MIC: ≥70dB LINE: ≥70dB AUX: ≥80dB
•    Sursa de alimentare: autoswitch 100-240V~ 50/60Hz
•    Temperatura operare: 0 -40°C

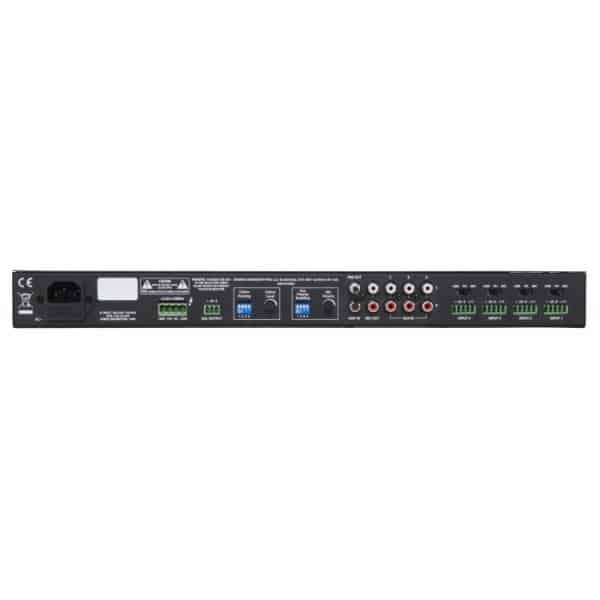

•    Conectori intrare/iesire: terminal block RCA
•    Consum: 160VA
•    Dimensiuni: 439 x 44 x 278 mm – 1 unitate rack19”
•    Greutate: 5 kg
