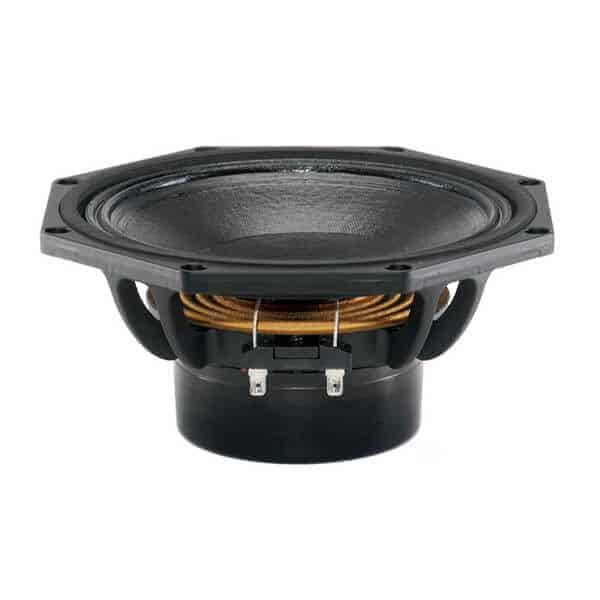

B&C Speakers 8NDL64-8 Difuzor 8 Inch Loudspeaker

B&C Speakers 8NDL64-8 Difuzor 8 Inch Loudspeaker

Specifications:

• Nominal diameter 200 mm (8.0 in)
• Nominal impedance 8 ohms
• Minimum impedance 7.2 ohms
• Nominal power handling 350 W
• Continuous power handling 700 W
• Sensitivity (1W/1m) 97.0 dB
• Frequency range 80 – 4000 Hz
• Voice coil diameter 64 mm (2.5 in)
• Winding material Copper
• Former material Glass Fibre
• Winding depth 14 mm (0.55 in)
• Magnetic gap depth 8 mm (0.31 in)
• Flux density 1.25 T
• Shipping weight 3.2 kg (7.05 lb)

Parameters:

• Fs 80 Hz
• Re 5.4 ohms
• Qes 0.24
• Qms 11.0
• Qts 0.25
• Vas 10.0 dm3 (0.35 ft3)
• Sd 220.0 cm2 (34.1 in2) Reference efficiency 1.9 %
• Xmax 4.5 mm
• Xvar 5.0 mm
• Mms 28 g
• Bl 17.5 Txm
• Le 0.62 mH
• EBP 333 Hz
