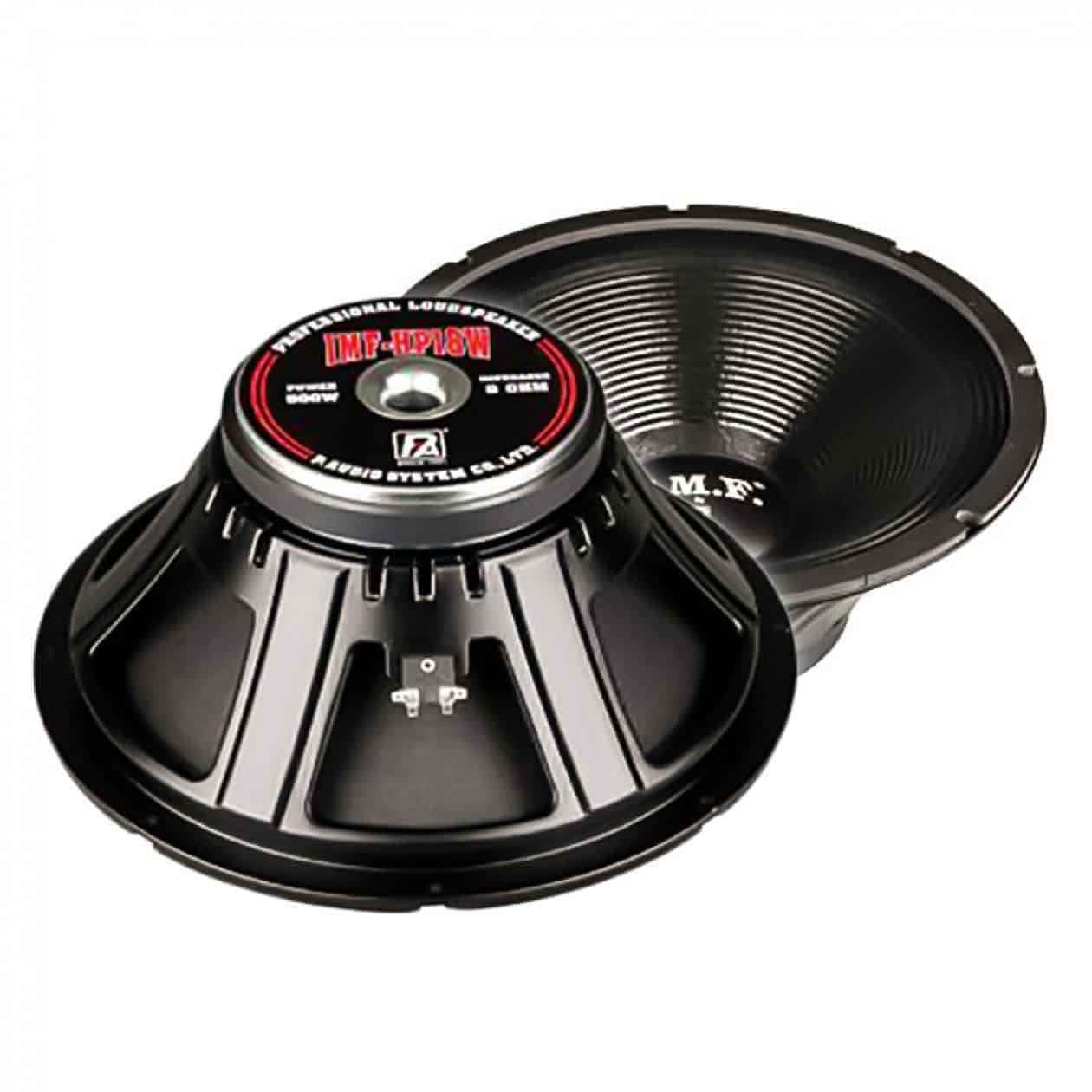

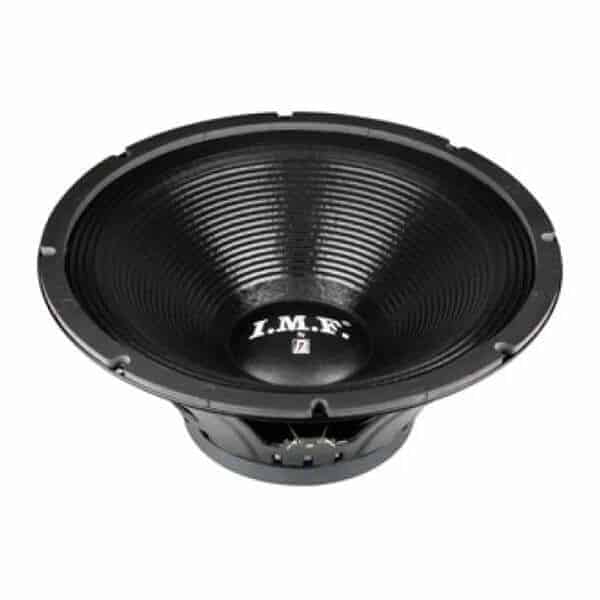

P-audio IMF-HP18W, Difuzor 18 inch Subwoofer

P-audio IMF-HP18W – Difuzor 18 inch Subwoofer 500W

Spcificatii:

• Nominal diameter – 457 mm/18 in
• Power rating – 500 W(AES)
• Nominal impedance – 8 Ohm
• Sensitivity – 95 dB
• Frequency range – 30-200 Hz
• Chassis type – Heavy Duty Stamp Steel
• Magnet type – Ferrite
• Magnet weight – 2.26 kg/79.8 oz
• Voice coil diameter – 76.3 mm/3.0 in
• Coil material – SV-W
• Former material – Aluminum
• Cone material – Paper
• Surround material – Cloth
• Suspension – Single
• X-max – 2.0 mm/0.08 in
• Gap depth – 10.0 mm/0.39 in
• Voice coil winding width – 14.0 mm/0.55 in
• Net Weight – 9.6 kg/21.2 lb
• Packing Dimension 505mm x 505mm x 250mm
• Shipping Weight 11.2 kg/24.7 lb

Parametri P-audio IMF-HP18W:

• Re – 6.7 Ohm
• Fs – 33 Hz
• Mms – 156.29 g/5.51 oz
• Mmd – 133.46 g/4.71 oz
• Qms – 4.02
• Qes – 0.54
• Qts – 0.48
• Vas – 285.0 lt/10.06 ft
• BI – 20.08 Tm
• Cms – 1.5e-04 m/N
• Rms – 8.07 Ns/m
• Le (at 1kHz) – 0.75 mH
